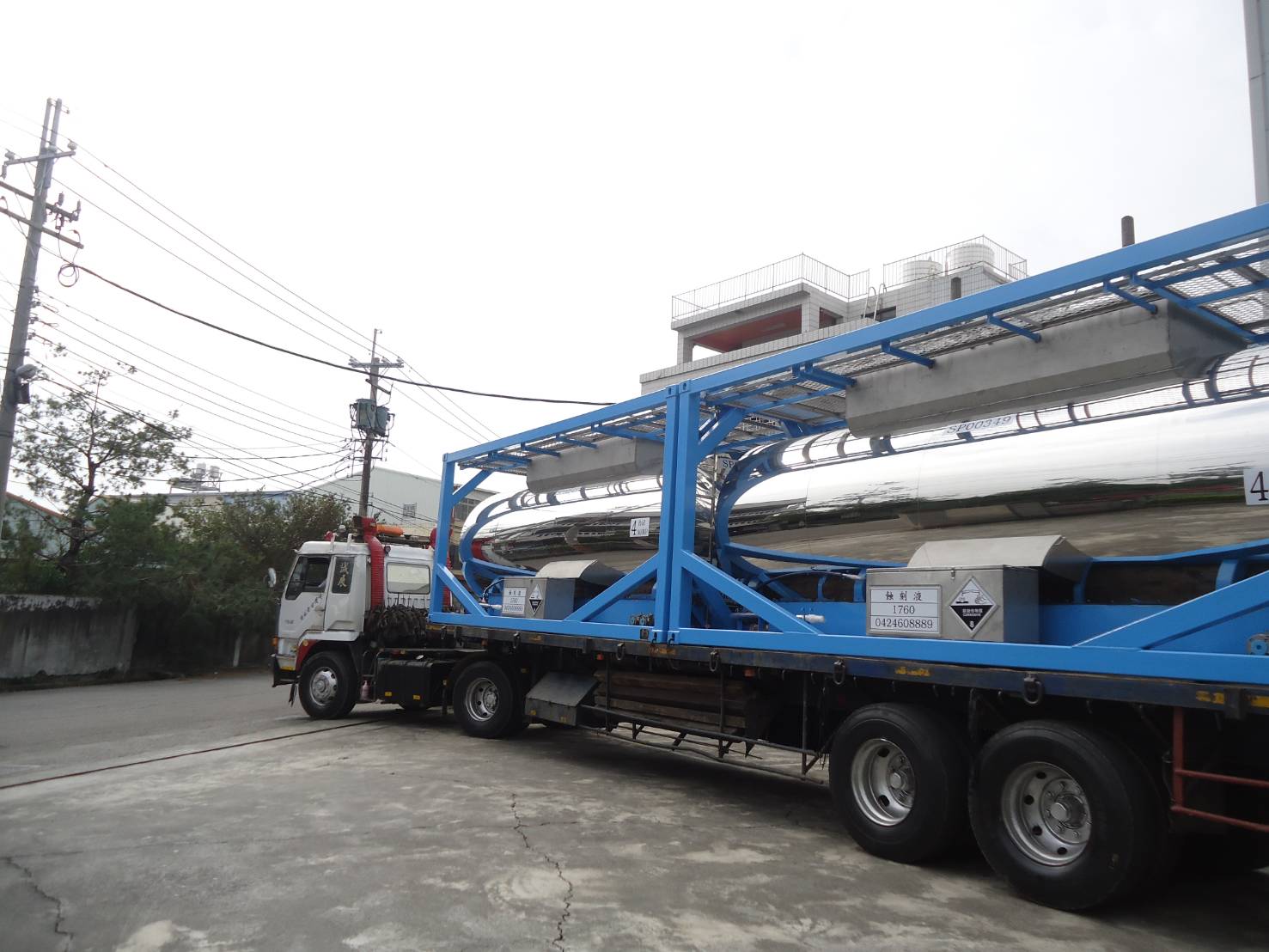

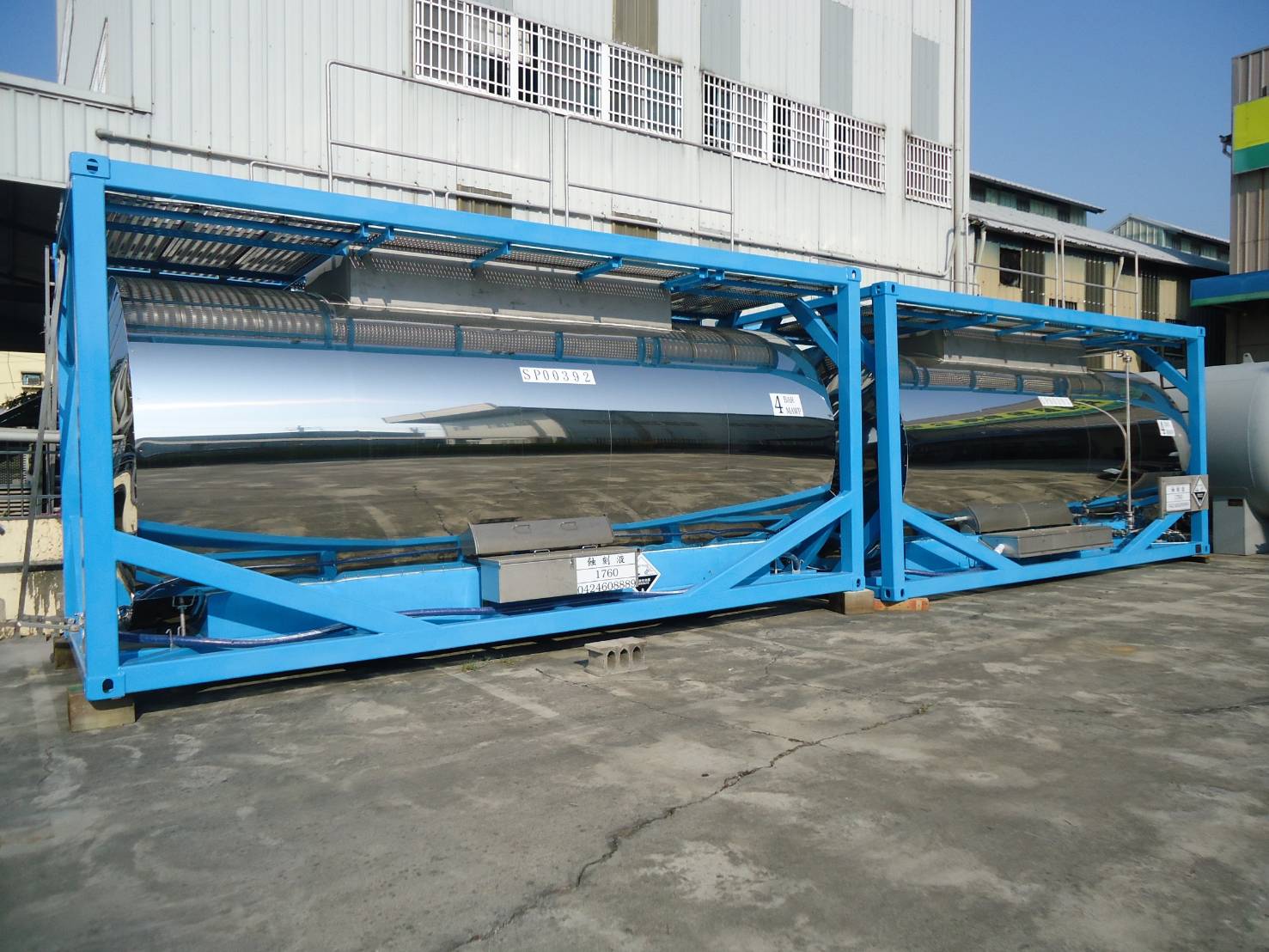

專業運輸槽車ISO TANK
遠承科技提供專業運輸槽車ISO TANK，我們的運輸槽車ISO TANK耐酸、耐鹼、抗腐蝕，十分適合用來以灌裝方式運輸製程所需化學品以及清運化學相關廢液。
EVERSUPP遠承科技是由一群鐵氟龍領域專家所組成，成立至今已服務超過300家半導體/化工廠/光電、電子產業客戶，盡力為客戶提供安全、有保障的服務，有運輸槽車ISO TANK需求，歡迎來電洽詢遠承科技 04-2371-7995 ！
Container Size:
| L/mm | H/mm | W/mm | L/Ft. | H/Ft. | W/Ft. | Available capacity X1,000 liters |
| 6058 | 2591 | 2438 | 20 | 81/2 | 8 | 13~14.5,16.8~22 |
| 6058 | 2438 | 2438 | 20 | 8 | 8 | 10.5~13 |
| 2991 | 2438 | 2438 | 10 | 8 | 8 | 6.0~7.0 |
Accessories:
| 1.Liquid Line valve | ☐ball valve | ☐dia. Valve | |
| 2.N2 line valve | ☐ball valve | ☐dia. Valve | |
| 3.Dip tube | ☐ | ||
| 4. Relief valve | ☐ | ||
| 5.Thermometer | ☐ | ||
| 6.Pressure gauge | ☐ | ||
| 7.Hose box | ☐top | ☐side | |
| 8.N2 Flush liquid line hose | ☐ | ||
| 9. Liquid line hose | ☐ | ||
| 10. Liquid Quick connector | |||
| Size: | ☐1 | ☐1 1/2 | ☐2 |
| Material: | ☐SUS316 | ☐PCTFE | ☐PTFE |
| Type: | ☐Socket | ☐Plug with FL'G | |
| 11.N2 Quick Connector | |||
| Size: | ☐1/2 | ☐3/4 | ☐1 |
| Material: | ☐SUS316 | ☐PCTFE | ☐PTFE |
| Type: | ☐Socket | ☐Plug with FL'G | |
 |
|||
運輸槽車ISO TANK配件與規格

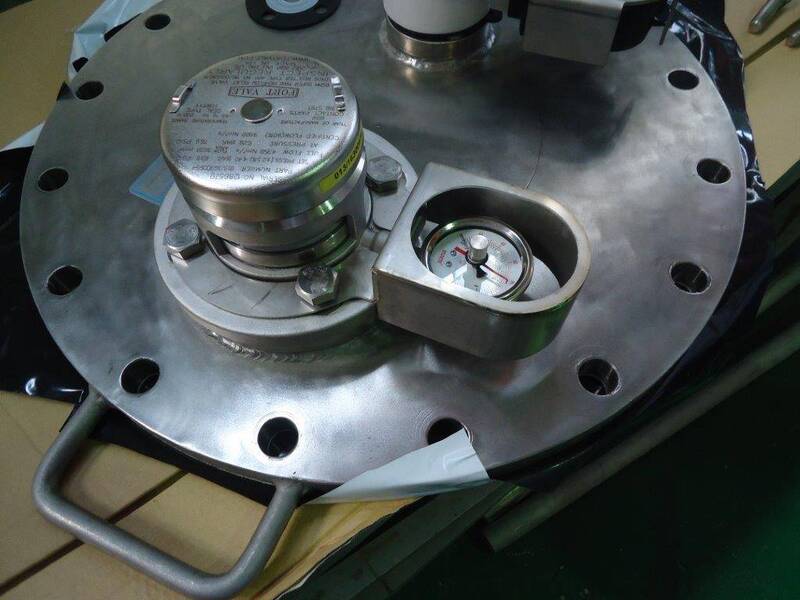

人孔蓋、安全閥、爆裂片、壓力表
- Pressure Relief Valve：2-1/2”Fort type Set pressure at @20° C atm (+)4.4bar Elfab rupture disc
- Bursting Disc : 2-1/2” Burst Pressure at @20° C atm (+)4.84bar
- Pressure Gauge for Pressure Relief Device : 2-1/2”,Range from 0 to 100psi

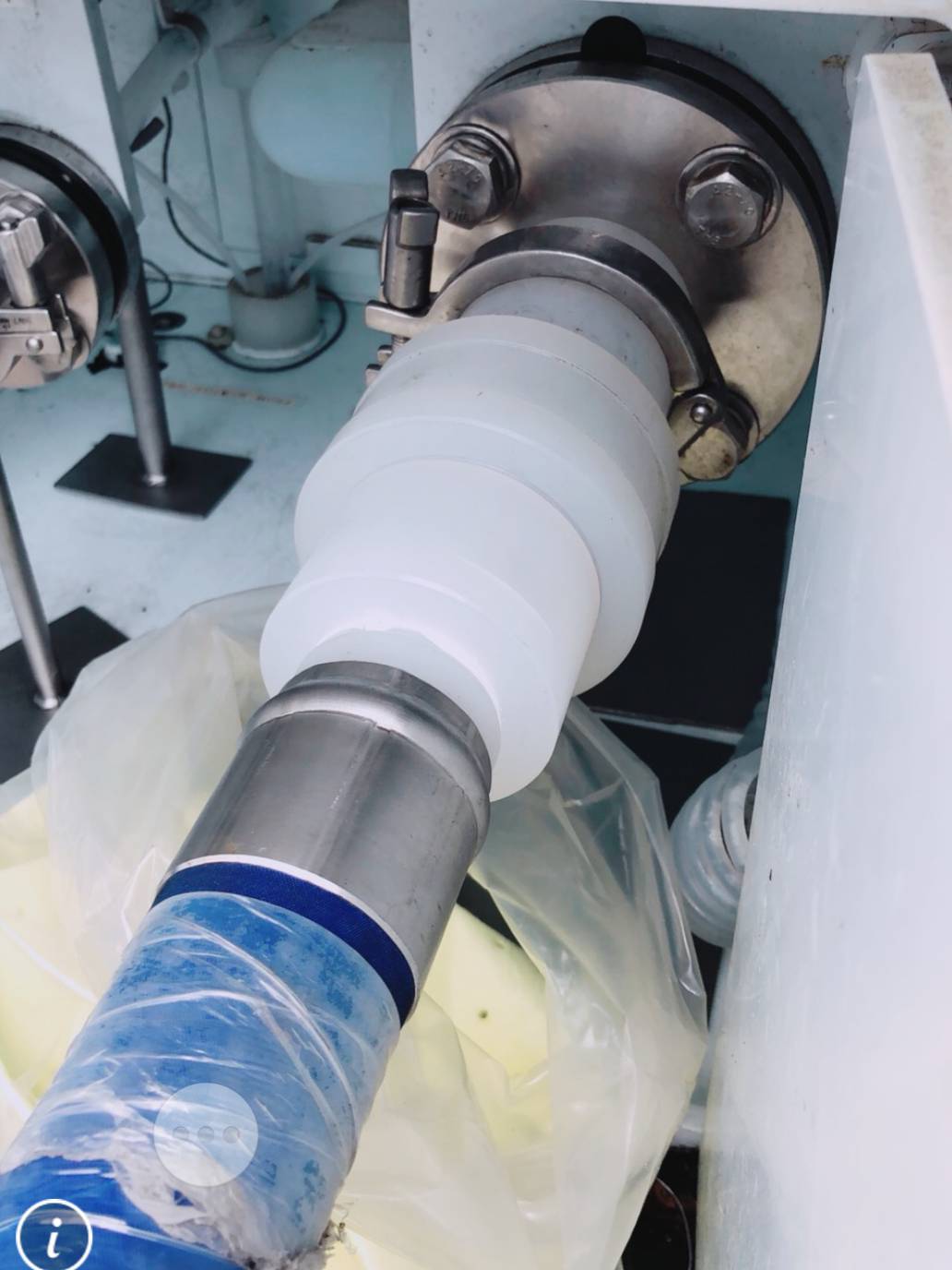

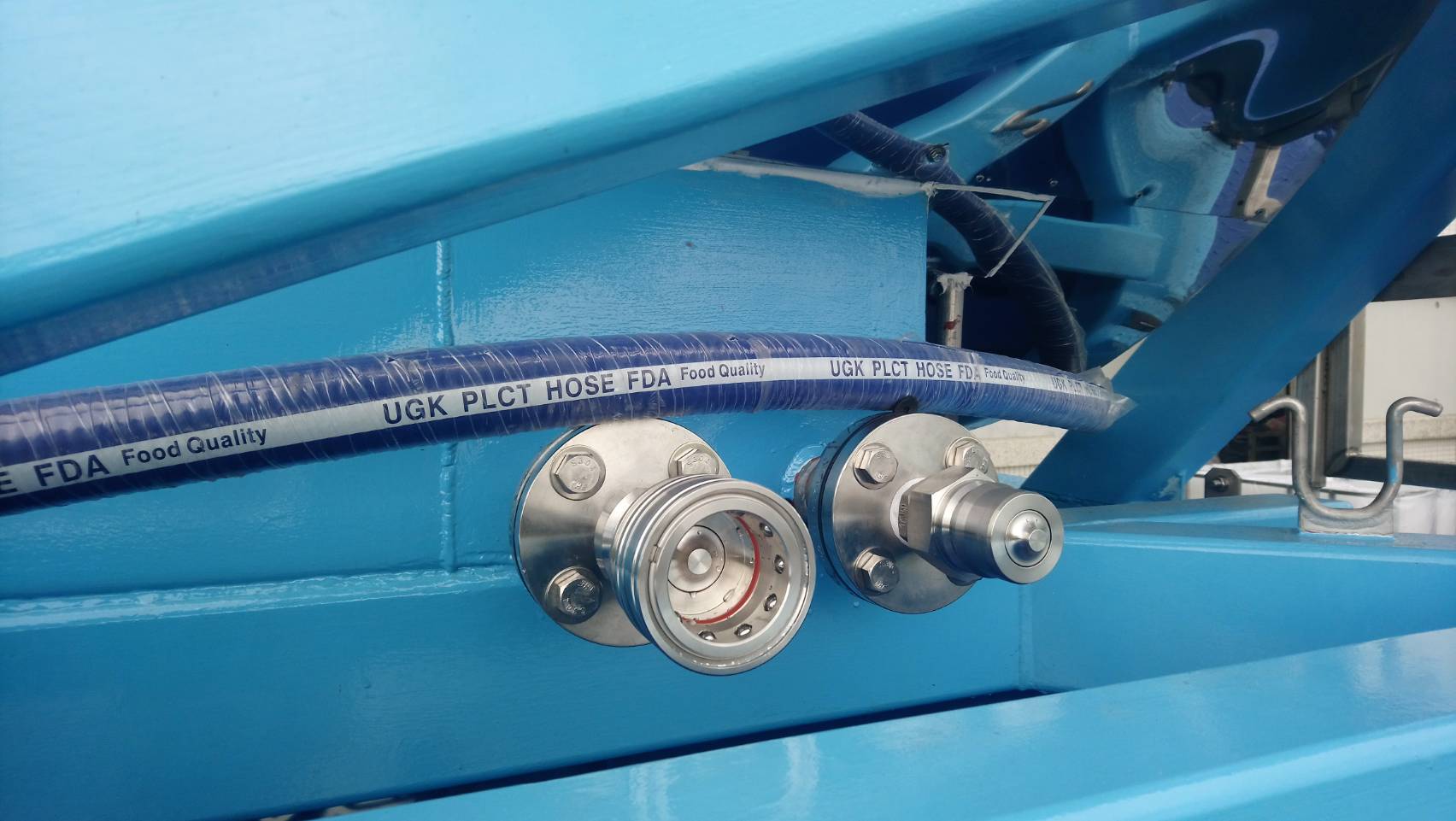

化液&N2之化學管

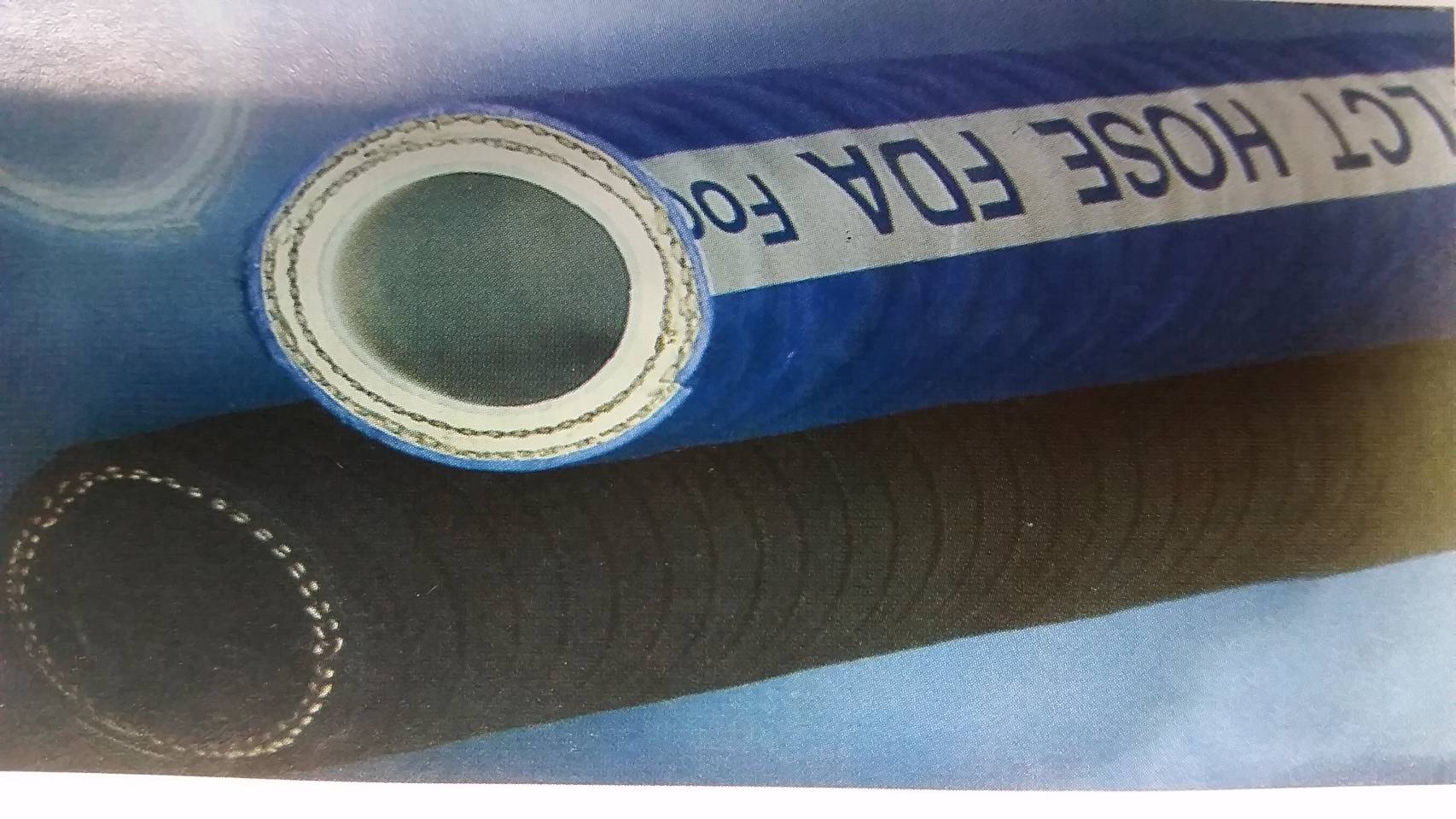

- 40A/20A eversupp chemical Hose Rubber covered smooth bore teflon hose
- High purity Teflon tube
- Can be cleaned with steam Non-stick smooth tube Easy to clean assured sterility Caustics , solvents or other cleaning agents
- Full vacuum rated
- Smooth tube design
- Temperature Rating : -40°C to 180°C
- F.D.A (Food uucl Drug Administration)
閥件/管件
- Ball valve / Diaphragm valve
- Ball valve : SUS304 lined with PFA
- Fitting : SUS304 / 316 lined with PFA
注入管
- Liquid lnlet : 40A SUS304 inner / external lined Teflon
溫度計
- Large easily legible display
- High data security
- Measurement data memory for 1millid measurement valves
- Up to 3 year’s battery life
- Date transfer via USB cable or SD card
