In connection with high purity demand, strict corrosion-resistance quality of fluoropolymers from semi-conductor industry

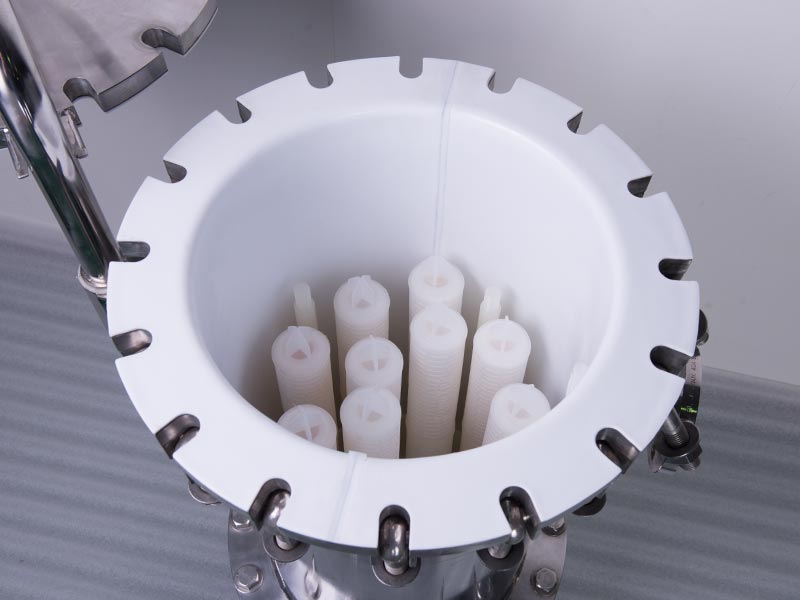

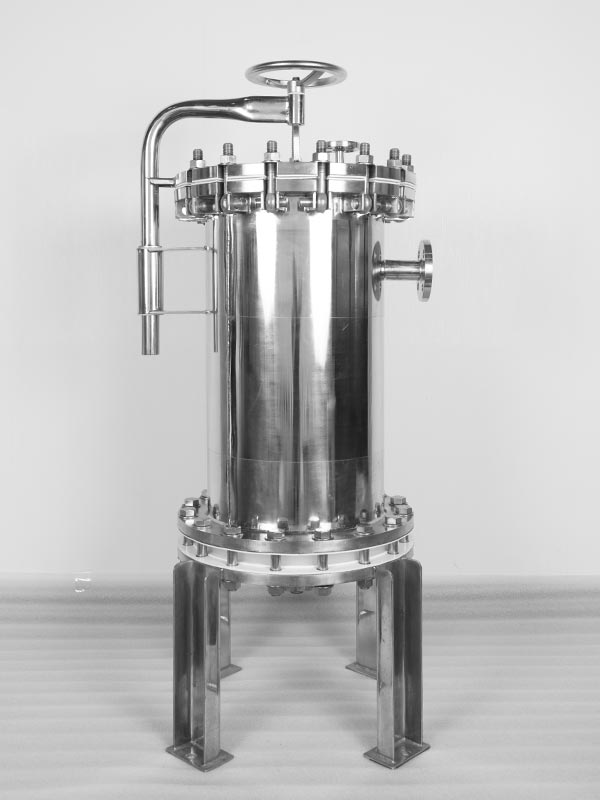

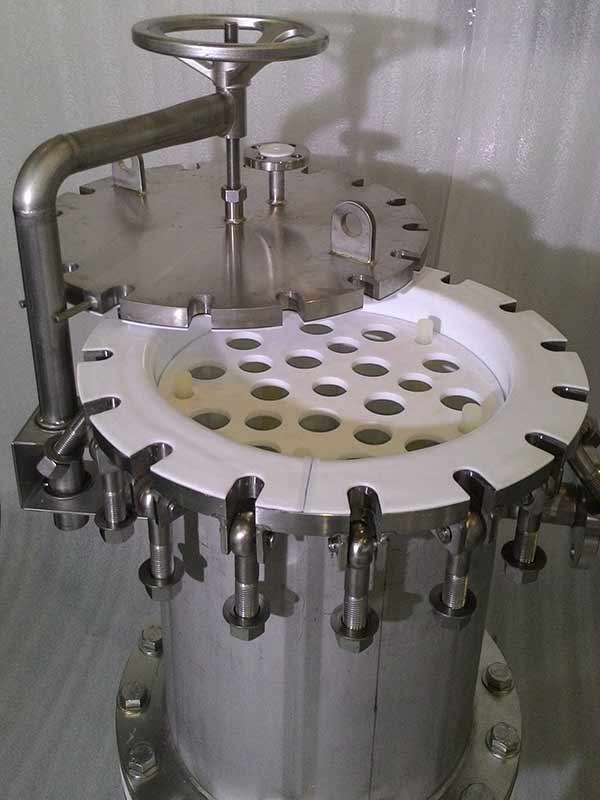

Lining PTFE Cartridge Filter Housing

Design P

6kg/cm²

Design T.

100℃

Operating P.

4kg/cm²

Operating T.

75℃

Accessory

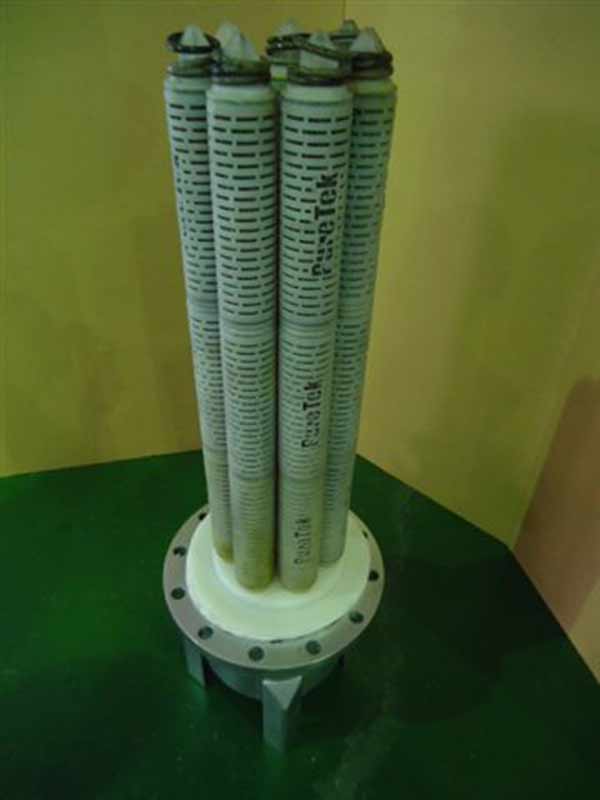

Cartridges
Lining PTFE Cartridge Filter Housing-EVERSUPP TECHNOLOGY CORP
Lining PTFE Cartridge Filter Housing-EVERSUPP TECHNOLOGY CORP
Lining PTFE Cartridge Filter Housing-EVERSUPP TECHNOLOGY CORP
Lining PTFE Cartridge Filter Housing-EVERSUPP TECHNOLOGY CORP
Lining PTFE Cartridge Filter Housing

QTY of
Cartridge

Froduct code Length of Cartridge Cartridge Meterial In & Outlet Size In & Outlet Type Interior surface finished
5~19 CF=Cartridge

10"
20"
30"


222
226
304
316
316#

50A-2"
65A-2-1/2"
80A-3"

10K-JIS
150P-ANSI
PN10-DIN
L-Lining
Exterior surface
finished

To meet the demand of semiconductor and panel industries,cooperating the acid-suppling system,we specially develop filter of core type(0.1um~60um) and various type.

ACID-Washng

Polishing

E-Epoxy

Model

Length of Carlridge N1/N2 N3 A
m/m
B
m/m
C
m/m
D
m/m
E
m/m
F
m/m
G
m/m
Weight Volume
5~8CP 20" 2" F 3/4" F Ø306 575 120 140 1181 Ø597 253 120Kg 40L
5~8CP 30" 2" F 3/4" F Ø306 830 120 140 1436 Ø597 253 125Kg 58.5L
9~19CP 20" 2" F 3/4" F Ø406 575 120 140 1183 Ø707 303 175Kg 72L
9~19CP 30" 2" F 3/4" F Ø406 830 120 140 1438 Ø707 303 183Kg 104L
