In connection with high purity demand, strict corrosion-resistance quality of fluoropolymers from semi-conductor industry

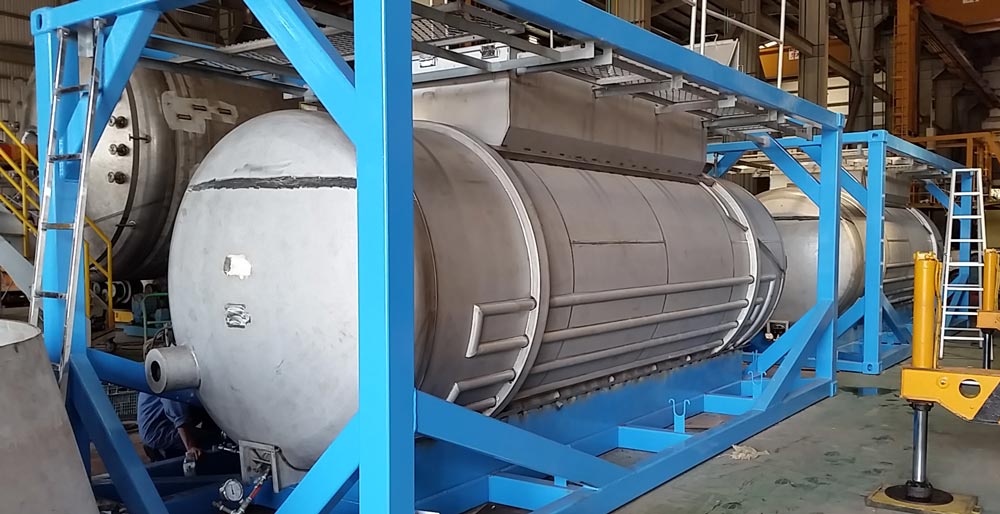

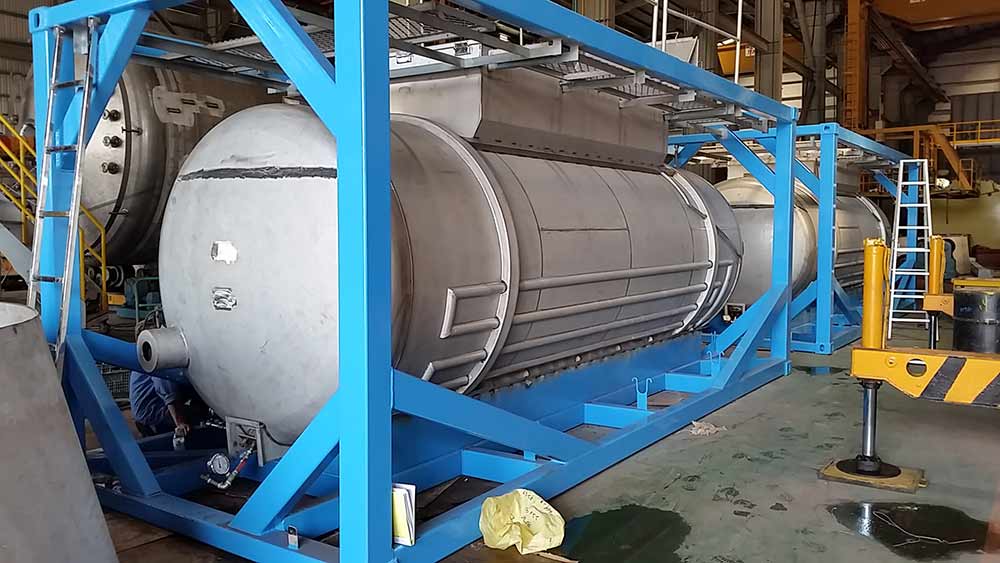

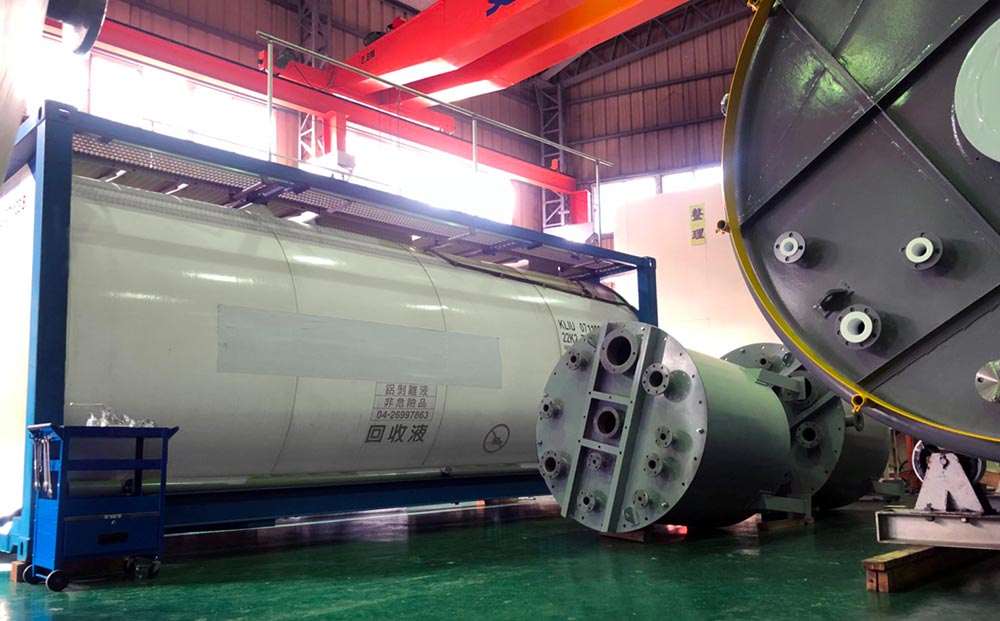

Transerfer Protable Tank Lorry For EL-Grade

Transerfer  Protable Tank Lorry For EL-Grade Transerfer  Protable Tank Lorry For EL-Grade
Container Size:
L/mm H/mm W/mm L/Ft. H/Ft. W/Ft. Available capacity X1,000 liters
6058 2591 2438 20 81/2 8 13~14.5,16.8~22
6058 2438 2438 20 8 8 10.5~13
2991 2438 2438 10 8 8 6.0~7.0

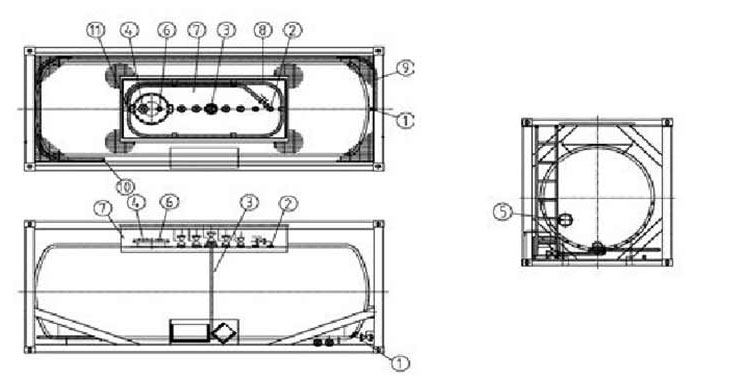

Accessories:
1.Liquid Line valve ☐ball valve ☐dia. Valve
2.N2 line valve ☐ball valve ☐dia. Valve
3.Dip tube
4. Relief valve
5.Thermometer
6.Pressure gauge
7.Hose box ☐top ☐side
8.N2 Flush liquid line hose
9. Liquid line hose
10. Liquid Quick connector
Size: ☐1 ☐1 1/2 ☐2
Material: ☐SUS316 ☐PCTFE ☐PTFE
Type: ☐Socket ☐Plug with FL'G
11.N2 Quick Connector
Size: ☐1/2 ☐3/4 ☐1
Material: ☐SUS316 ☐PCTFE ☐PTFE
Type: ☐Socket ☐Plug with FL'G
Transerfer  Protable Tank Lorry For EL-Grade

EVERSUPP Portable TANK Accessories

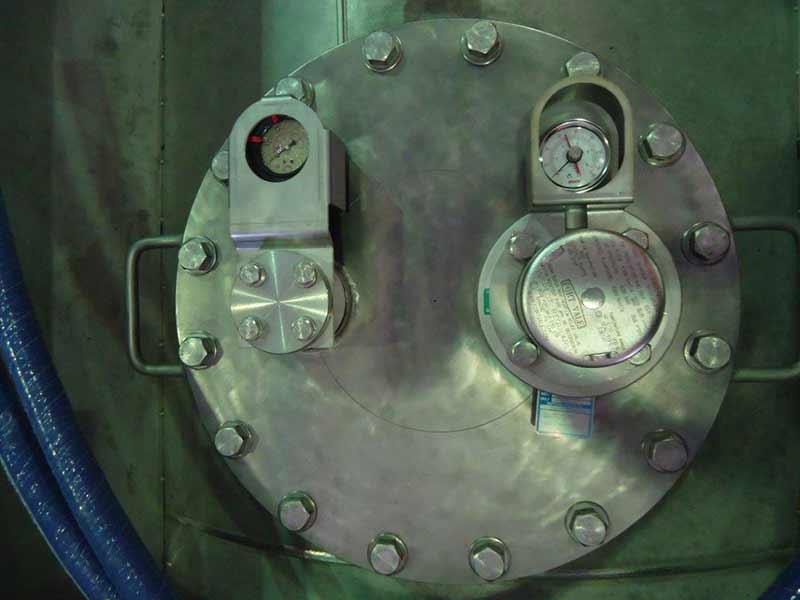

Man Hole Cover
  • Pressure Relief Valve:2-1/2”Fort type Set pressure at @20° C atm (+)4.4bar Elfab rupture disc
  • Bursting Disc : 2-1/2” Burst Pressure at @20° C atm (+)4.84bar
  • Pressure Gauge for Pressure Relief Device : 2-1/2”,Range from 0 to 100psi
Transerfer  Protable Tank Lorry For EL-Grade

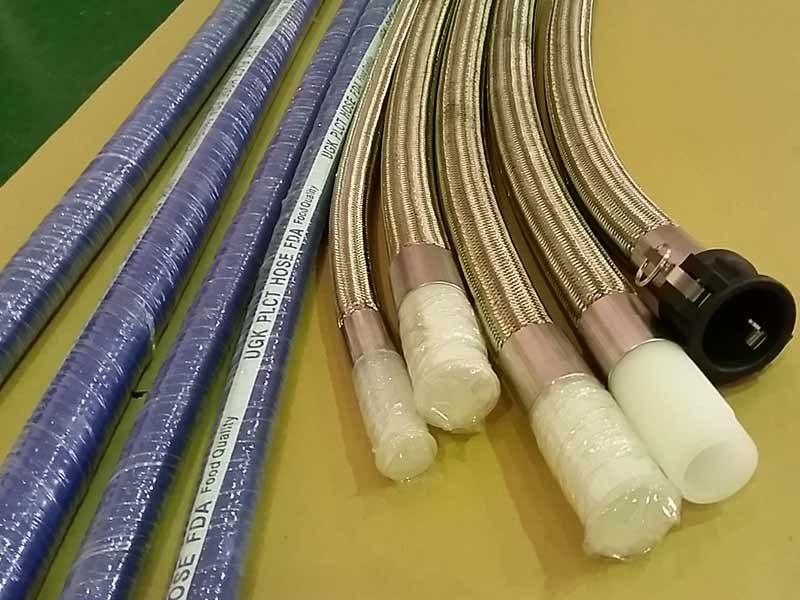

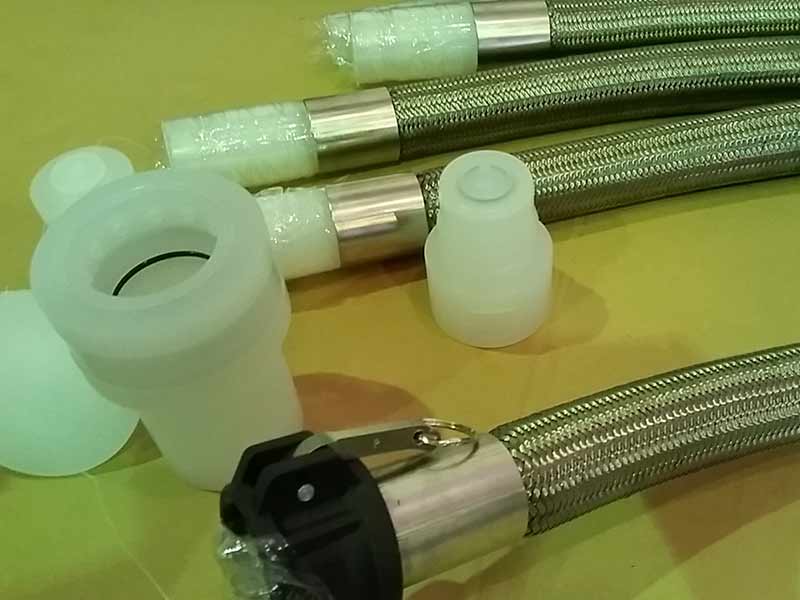

Liquid and Gas Horse
  • 40A/20A eversupp chemical Hose Rubber covered smooth bore teflon hose
  • High purity Teflon tube
  • Can be cleaned with steam Non-stick smooth tube Easy to clean assured sterility Caustics , solvents or other cleaning agents
  • Full vacuum rated
  • Smooth tube design
  • Temperature Rating : -40°C to 180°C
  • F.D.A (Food uucl Drug Administration)
 Liquid and Gas Horse
 Liquid and Gas Horse

Valve / Fitting
  • Ball valve / Diaphragm valve
  • Ball valve : SUS304 lined with PFA
  • Fitting : SUS304 / 316 lined with PFA
Dipping Pipe
  • Liquid lnlet : 40A SUS304 inner / external lined Teflon
Thermometer
  • Large easily legible display
  • High data security
  • Measurement data memory for 1millid measurement valves
  • Up to 3 year’s battery life
  • Date transfer via USB cable or SD card
